220V Biohazardous Medical Waste Management Solutions On Site Disposal Unit

MOQ:	30
Delivery Period:	45 work days
Payment Method:	L/C,T/T
Supply Capacity:	500 units monthly

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Li-Ying Technology

Certification

ISO, CE

Model Number

MMDU-30

Model.:

MMDU-30

Main Unit Body Dimensions:

634mm*503mm*749mm

Overall Weight:

110kg

Treatment Type:

High Temperature Steam And Microwave Sterilization

Type Of Process:

Semi-automatic Process

Chamber Volume:

30 Liter

Control:

Simple Button Operation

Sterilization Temperature:

≥ 135℃

Pressure:

≥ 0.33MPa

Sterilization Cycle:

≥ 30 Minutes

Installed Power:

3.5 Kw

Utility Requirements:

Electricity: 220V

Treatment Capacity *:

17L/cycle, Or Appr. 2 Kg/hr (±10%)

Staff Requirements:

No Specialized Operator / 1 Operator

Exhaust Gas Treatment System:

Included

Disposal Section material:

304 Stainless Steel

Microwave Frequency:

2450 +/- 50 MHz

Microwave Generator Power:

1.25kW

Treatment effect:

6 Log 10. The Treatment Effect Test Uses Bacillus Subtilis Var. Niger Spore (ATCC 9372) As Biological Indicator, With Killing Logarithm Value ≥ 6.00.

Other:

With A 'parameter Printer' Built Into The Machine That Can Track Cycle Data Such As Hospital Name/operator Name/cycle Time/weight/cycle Status.

Highlight:

220V Medical Waste Management Solutions

biohazardous Medical Waste Management Solutions

220V medical waste disposal solutions

Product Description

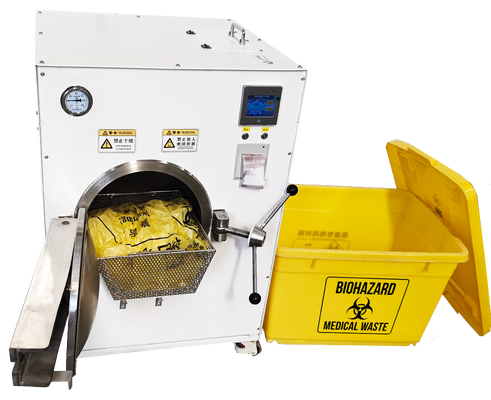

MMDU-30

It’s a sterilizer that uses the dual effects of microwave and high-pressure steam to sterilize biohazardous Waste.

Treatment capacity appr. 2kg/hr. Perfectly suited for disposing of medical waste in medium or small sized hospitals, clinics or any health centre, Customs and Quarantine Departments, etc.

Specifications

Treatment capacity: 17L/cycle, or appr. 2 kg/hr (±10%)

On-site medical waste disposal equipment for hospitals and clinics

MOU series: MMDU-30

Is a Microwave Medical Waste Disposal Unit that uses the dual effects of microwave and high pressure steam to sterilize Regulated Medical Waste (RMW), or medical waste with infection risk.

Treatment capacity: appr. 2kg/hr (based on an average density of medical waste at 0.1kg/l ~0.15kg/l.)

Sterilization bin volume: 30L

Technical Principle

The disposal unit first introduces high-pressure saturated steam into the high-pressure disinfection chamber of medical waste, while starting a microwave generator. It uses the thermal effect of microwave to heat the high-pressure disinfection chamber to maintain temperature and prevent steam condensation. It is sterilized by the sensitivity of bacteria to temperature. In addition, microwave has a non-thermal effect, Non thermal effect refers to other microbial killing effects besides thermal effect, which is a unique effect of microwave sterilization. The heating and warming process of the equipment is also a disinfection process. After the disinfection chamber reaches 135 ℃ or above, it is held for another 5 minutes to complete the disinfection.

High disinfection efficiency : 99.9999% sterilization in 5 minutes under the temperature and pressure conditions achieved.

Energy saving : Half the energy cost of autoclaves

Personnel-friendly & Eco: Below dioxin generation temperature

Specifications

Model.	MMDU-30
Main unit body Dimensions	634mm503mm749mm
Overall weight	110kg
Treatment type	High temperature steam and Microwave sterilization
Type of process	Semi-automatic process
Chamber volume	30 Liter
Control	Simple button operation
Sterilization temperature	≥ 135℃
Pressure	≥ 0.33MPa
Sterilization cycle	≥ 30 minutes
Installed power	3.5 Kw
Utility Requirements	Electricity: 220V
Treatment capacity *	17L/cycle, or appr. 2 kg/hr (±10%)
Staff requirements	No specialized operator / 1 operator
Exhaust gas treatment system	Included
Disposal section material	304 stainless steel
Microwave frequency	2450 +/- 50 MHz
Microwave generator power	1.25kW
Treatment effect	6 log 10. The treatment effect test uses Bacillus subtilis var. niger spore (ATCC 9372) as biological indicator, with killing logarithm value ≥ 6.00.
With a 'parameter printer' built into the machine that can track cycle data such as hospital name/operator name/cycle time/weight/cycle status.

Applicable Range

The processing scope of the equipment includes infectious, injurious, and pathological waste in the category of Biohazardous Waste.

*Do not put containers in a sealed state into the equipment.

Characteristics of the unit

DISINFECTION EFFICIENCY & ENERGY SAVING

High pressure steam and microwave combination disinfection, the disinfection process only takes 5 minutes, high disinfection efficiency, energy saving;
LONG SERVICE LIFE OF COOLING SYSTEM

Using a water cooled microwave generator, the cooling medium is antifreeze, with a long service life;
SAFE & HEALTHCARE OF WORKERS

The door of the microwave disinfection equipment adopts a conductive sealing strip sealing structure and is equipped with an interlocking system to prevent microwave leakage;
DURABLE DISINFECTION CHAMBER

The disinfection chamber is made of 304 stainless steel, it is durable.
EXHAUST TREATMENT FOR ENVIRONMENTAL

Equipped with an exhaust gas treatment device, including a high-efficiency filter and an activated carbon filter, the high-efficiency filter is used to treat microorganisms contained in the exhaust gas, with a filter particle diameter of 0.2 μ m. It can filter out almost all microorganisms, and activated carbon filters are used for deodorization.

Technical Compare

Compare technologies	LiYing Technology	Autoclave	Autoclave with a shedder	Incinerator
	(Microwave)	(Hot steam)	(Hot steam)	(Incineration)
Continuous process	✓	X	X	X
Integral shredding	✓	X	✓	X
Unrecognisable waste	✓	X	✓	✓
Volume of waste reduction	✓	X	✓	✓
Mass of waste reduction	✓	X	X	✓
Installation requirements	Low	High	High	High
Complexity of the installation	Low	Intermediate	Intermediate	High
On-site installable	✓	✓	✓	X
Technology approval by countries all over the world	High	Intermediate	High	Low
Level of sterelization	High	Intermediate	High	High
Odours	Low	High	Intermediate	Intermediate
Noise	Low	Intermediate	Intermediate	High
Treatment of pathological and anatomical waste	✓	X	✓	✓
Cost
ROI	High	Low	Low	Low
Investment costs	Intermediate	Low	Intermediate	High
Operating costs	Low	High	High	High
Maintenance costs	Low	High	High	High
Labour costs	Low	High	High	High
Environment
Impacts on the environment	Low	Intermediate	Intermediate	High
Treated waste recyclable	✓	X	X	X
No contaminated rejection (such as water, steam)	✓	X	X	X
Security
No risk related to pressurized vessel	✓	X	X	X
Risk for workforce/personnel health	No risk of toxic contaminants released into the air or the treated waste	Intermediate	Intermediate	High
